The Best Full-Motion TV Mounts: Articulating Wall Mount Guide

The Best Full-Motion TV Mounts: Articulating Wall Mount Guide

Nothing makes a large screen look cleaner than a professional wall-mounted TV setup. But the mount behind the TV matters just as much as the screen itself. A full-motion TV mount—also called an articulating TV wall mount—lets you extend, swivel, tilt, retract, and level your TV long after installation.

That flexibility helps reduce room glare, improve viewing angles, and make one TV work perfectly from multiple seating areas in the room.

At TVPro, we install fixed mounts, tilt mounts, full-motion mounts, outdoor-rated mounts, fireplace mounts, recessed boxes, hidden wire systems, soundbars, and commercial displays. This guide explains how to choose the right mount for your screen and compares four top-performing full-motion mount options.

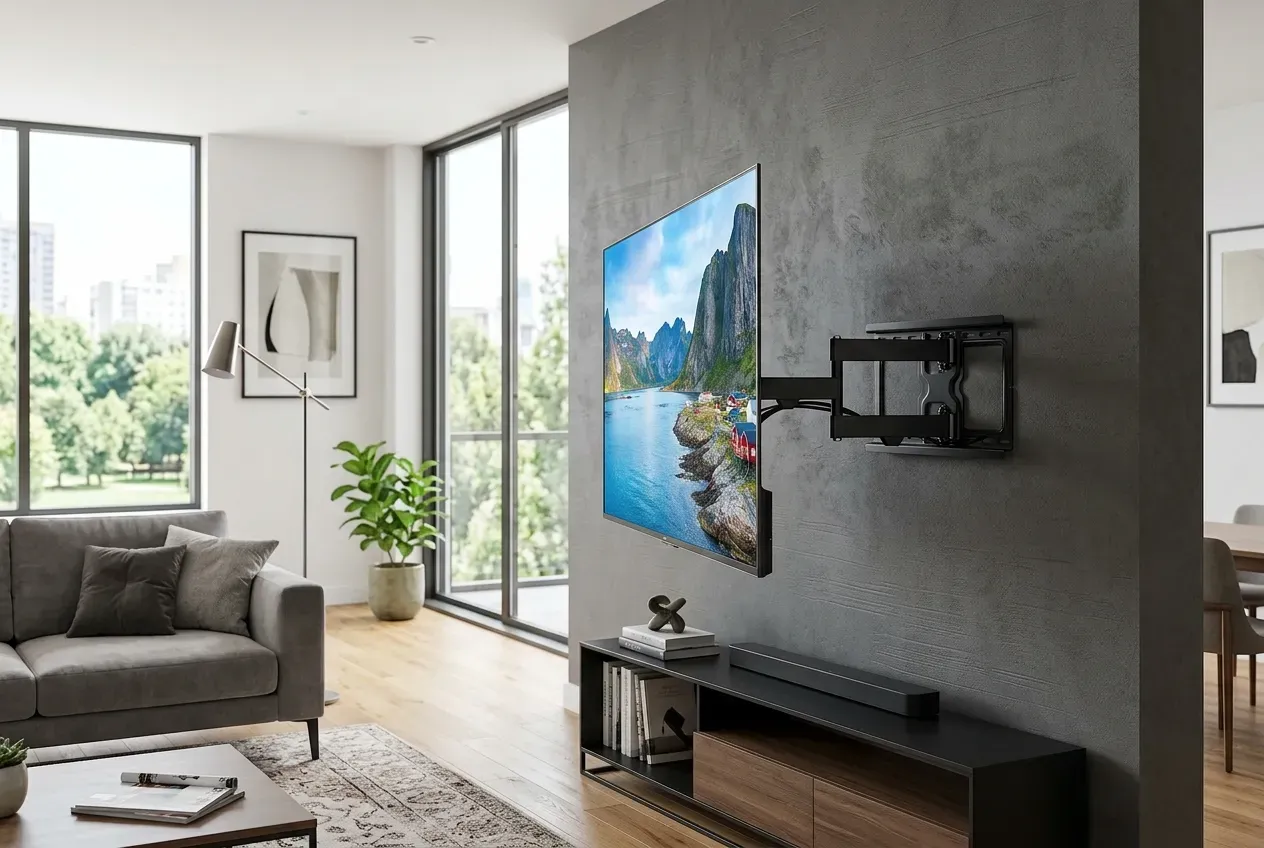

Suggested Alt Text: Modern flat-screen TV on a dual-arm full-motion articulating bracket extended in a modern living room

What Is a Full-Motion TV Mount?

A full-motion TV wall mount is the most flexible type of TV bracket. Unlike a fixed mount that keeps the screen flat against the wall, or a tilt mount that only angles the TV slightly up or down, a full-motion mount gives you complete control:

• Extend: Pull the TV forward away from the wall (up to 28 inches on select models).
• Swivel: Angle the screen left or right toward the kitchen, dining area, or side seats.
• Tilt: Angle the TV up or down to eliminate window reflection and overhead glare.
• Level: Micro-adjust the screen alignment after drilling to ensure a 100% level line.
• Retract: Push the TV back close to the wall (down to 2–3 inches profile) when not in use.

This type of mount is ideal for open-concept living rooms, corner TV installations, large family rooms, bedrooms, offices, outdoor patios, and commercial spaces.

How TVPro Chooses the Right Mount

Before buying any mount, verify these five critical specifications:

1. TV Size and Weight: Never exceed the mount's maximum rated weight capacity or screen size recommendation.
2. VESA Pattern: Measure the screw hole spacing on the back of your TV (e.g., 200x200, 400x400, 600x400 mm).
3. Wall Material: U.S. homes typically feature wood studs, but metal studs, brick, concrete, and tile fireplace walls require specialized fasteners and mounting hardware.
4. Stud Spacing: Confirm whether your wall studs are 16 inches apart or 24 inches apart.
5. Extension & Swivel Range: Ensure the arm length provides enough clearance to swivel your specific TV width without hitting the wall.

Full-Motion TV Mount Comparison Table

| Mount Model | Best TV Size | Max Weight | Extension / Profile | Swivel / Tilt Range | Stud Spacing / Wall Type | | :--- | :--- | :--- | :--- | :--- | :--- | | Mounting Dream MD2380-24K | 32" – 55" (Light 65") | 99 lbs | 3.1" – 15.2" | ±45° Swivel; +5°/-15° Tilt | Up to 24" Wood Studs / Concrete | | ECHOGEAR EGLF2 MaxMotion | 42" – 90" | 125 lbs | 2.4" – 22.0" | 130° Total Swivel; +5°/-15° Tilt | 16" – 24" Studs / Brick / Concrete | | SANUS VMF720 / VLF728 | 32" – 65" (VMF) / 42" – 90" (VLF) | 55 lbs / 125 lbs | Up to 20" (VMF) / 2.15" – 28.0" (VLF) | Up to 60° (VMF) / 57° Swivel (VLF); 15° Tilt | Premium Wood Studs / Designer Walls | | Perlegear PGLF8 / FX25 | 42" – 90" | 132 lbs | 3.0" – 16.6" | ±50° Swivel; +5°/-15° Tilt | 12" / 16" Wood Studs / Concrete |

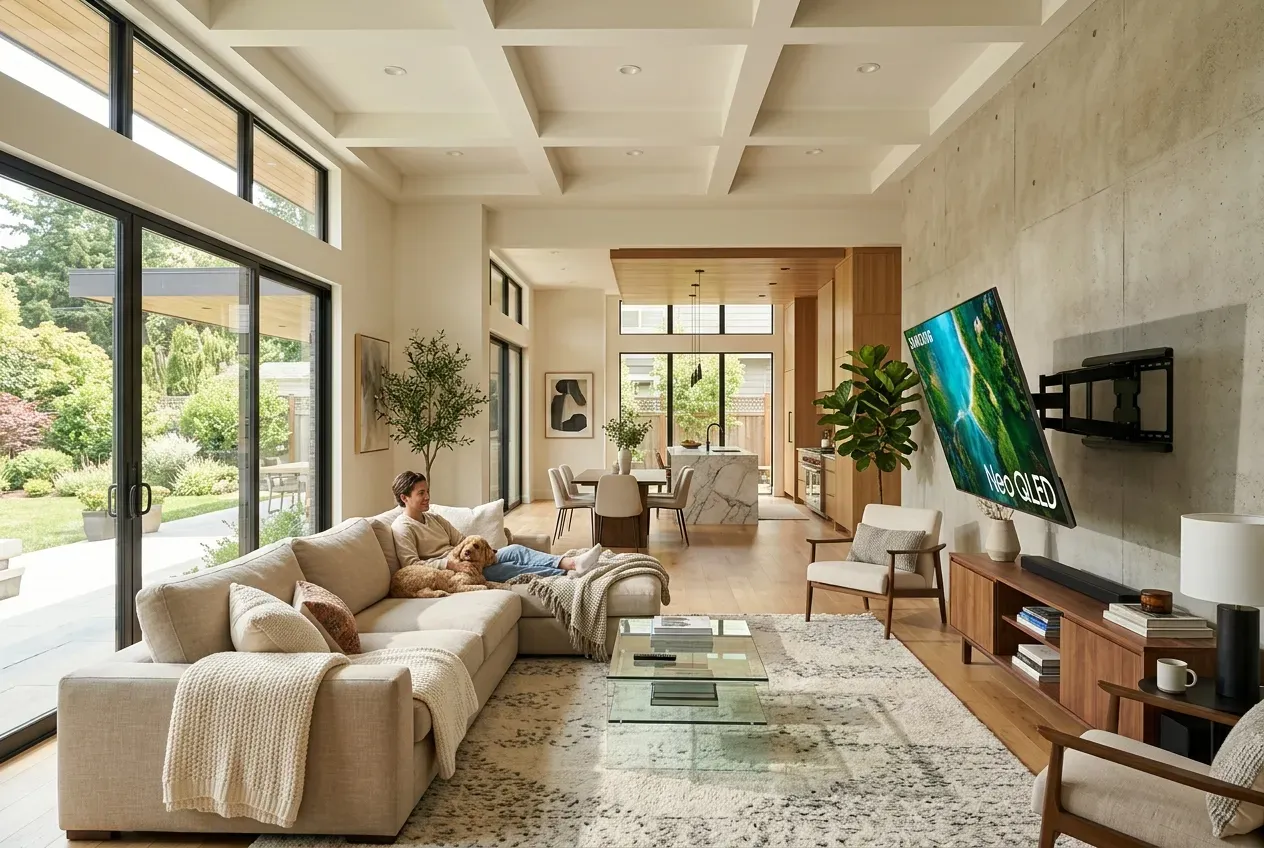

Suggested Alt Text: Flat-screen TV on a full-motion mount swiveled toward a sofa in an open-concept room

Recommended Full-Motion Mounts Breakdown

1. Mounting Dream MD2380-24K

Best Budget Choice for Small and Medium TVs

• Ideal For: 32–55 inch TVs and lighter 65 inch models.
• Key Specs: Supports up to 99 lbs, 15.2" extension, 45° left/right swivel, +5°/-15° tilt, fits up to 24" stud spacing.
• Summary: A reliable, high-value option for bedrooms, apartments, home offices, and secondary viewing areas.

2. ECHOGEAR EGLF2 MaxMotion

Best Heavy-Duty Value for Large TVs

• Ideal For: 65, 75, 85, and 90 inch screens in large living rooms.
• Key Specs: Rated for 42–90 inch screens up to 125 lbs, 22" extension, 2.4" slim wall profile, 130° total swivel range, +5°/-15° tilt, 16–24" stud spacing.
• Summary: Exceptional strength and extension for open-concept floor plans requiring wide swivel angles.

3. SANUS VMF720 / VLF728

Best Premium Movement and Designer Feel

• Ideal For: High-end residential living rooms and luxury designer installations.
• Key Specs: VMF720 (32–65", 55 lbs limit, 20" extension) / VLF728 (42–90", 125 lbs limit, 28" extension, 2.15" profile, 57° swivel).
• Summary: SANUS delivers smooth effortless glide, ultra-slim retracted profile, and premium engineering for demanding spaces.

4. Perlegear PGLF8 / FX25

Best Heavy-Duty Value Mount

• Ideal For: Large 65–90 inch TVs on a budget.
• Key Specs: 132 lbs maximum capacity, VESA 200x100 to 600x400 mm, 16.6" extension, 3" wall profile, ±50° swivel, +5°/-15° tilt.
• Summary: A heavy-duty dual-arm workhorse for homeowners wanting high weight capacity without a premium price tag.

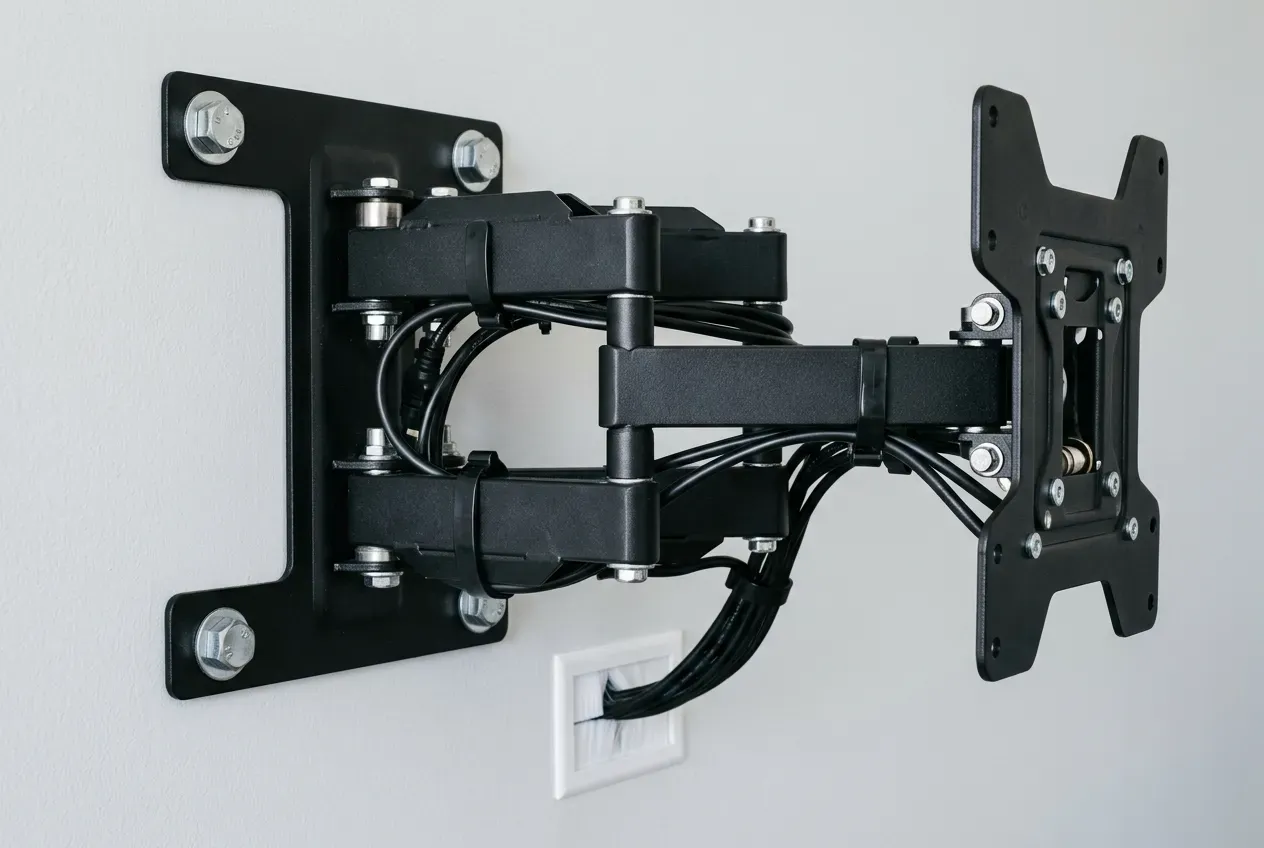

Suggested Alt Text: Heavy-duty black steel dual-arm articulating TV wall mount bracket bolted securely to drywall

Which Mount Should You Use for Each TV Size?

• For 37–55 inch TVs: A medium-duty full-motion mount like the Mounting Dream MD2380-24K is usually ideal when weight and VESA patterns align.
• For 65 inch TVs: Do not select by screen size alone. Check the TV weight and how often you plan to extend the screen. While light 65" TVs work on medium mounts, a heavy-duty dual-arm mount is recommended for frequent movement.
• For 75–85 inch TVs: Choose a heavy-duty dual-arm mount like ECHOGEAR EGLF2, Perlegear PGLF8, or SANUS VLF728. Large screens exert significant leverage on the wall when fully extended.
• For 90 inch TVs: Always select a mount explicitly rated for 90" screens, confirming stud alignment, weight, VESA pattern, and extension clearance prior to installation.
• For Outdoor TV Installation: Standard indoor mounts must never be used outdoors. Outdoor patios, gazebos, and poolside setups require weatherproof or outdoor-rated full-motion mounts with corrosion-resistant finishes and stainless steel hardware.

Why Professional Full-Motion TV Mount Installation Matters

A full-motion mount exerts far more structural leverage on your wall than a fixed flat bracket because extending the TV outward multiplies the force applied to the fasteners.

That is why TVPro technicians rigorously evaluate:

• Wall structure (wood studs vs. metal studs vs. solid masonry/brick/tile)
• Lag bolt depth and anchor shear strength
• Center alignment and extension swing clearance
• In-wall cable slack and wire strain relief
• Recessed media box integration for hidden devices

A full-motion mount should never sag, drift, scrape against drywall, pull cables tight, or feel unstable. It should glide smoothly and lock into place securely. That is the difference between simply hanging a bracket and delivering a professional TV mounting service.

FAQ: Full-Motion TV Mounts

Can any TV use a full-motion mount?

No. The TV must match the mount's specified size range, weight limit, and VESA screw pattern. Larger TVs require dual-arm heavy-duty mounts and solid wall support.

Can a full-motion mount be installed on drywall?

Drywall alone is never strong enough to support a full-motion mount. The bracket must be anchored into solid wood studs, metal studs with specialized toggle anchors, or solid masonry/concrete.

How far should a TV extend from the wall?

For standard living rooms, 15 to 22 inches of extension is sufficient. Large rooms or corner installations benefit from 28 inches of extension for wider swivel angles.

Can full-motion mounts be used outdoors?

Indoor mounts will rust and fail outdoors. Outdoor installations require weatherproof, outdoor-rated full-motion mounts constructed with corrosion-resistant coatings and stainless steel hardware.

Which mount is best for a large 85 inch TV?

Heavy-duty dual-arm options like the ECHOGEAR EGLF2, Perlegear PGLF8, or SANUS VLF728 provide the necessary weight capacity (125+ lbs) and arm strength to prevent screen sag when extended.
